B1040P1A
SCHOTTKY BARRIER RECTIFIER DIODE

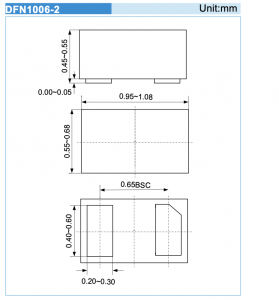

VOLTAGE 40 Volt DFN1006-2 Unit:mm
POWER 0.5 Watts
FEATURES
? Metal Silicon Junction, Majority Carrier Conduction
? Low Profile Package
? Low Power Loss, High Efficiency
? High Current Capability
? Low Forward Voltage Drop
? High Surge Current Capability
0.45~0.55
0.00~0.05
0.95~1.08
0.55~0.68
-
0.65BSC
MECHANICAL DATA
0.40~0.60
-
? Case Material: Molded Plastic.
? UL Flammability Classification Rating 94V-0
? Marking Code：4A/4O
