FEATURES
? General purpose amplifier applications
? NPN epitaxial silicon, planar design
? For switching and AF amplifier applications ? Ideally suited for automatic insertion
? Lead free in compliance with EU RoHS

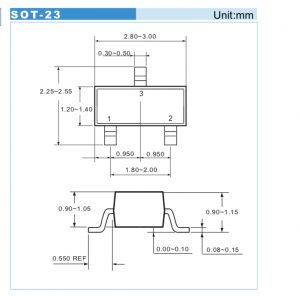

MECHANICAL DATA
? Case Material: Molded Plastic.
? UL Flammability Classification Rating 94V-0
DEVICE MARKING
BC846A=1A; BC846B=1B; BC847A=1E; BC847B=1F; BC847C=1G; BC848A=1J; BC848B=1K: BC848C=1L
