SURFACE MOUNT SUPERFAST RECTIFIER
VOLTAGE
50 to 1000 Volts
CURRENT
1.0 Ampere
FEATURES
? For surface mounted applications
? Low profile package
? Built-in strain relief
? Easy pick and place
? Superfast recovery times for high efficiency
? Plastic package has Underwriters Laboratory Flammability Classification 94V-O
? Glass passivated junction
? Lead free in comply with EU RoHS 2011/65/EU directives
?
MECHANICAL DATA

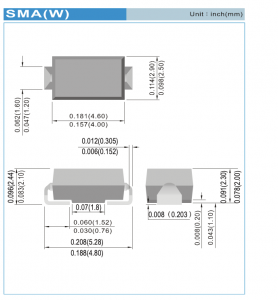

? Case: JEDEC DO-214AC molded plastic
? Terminals: Solder plated, solderable per MIL-STD-750,Method 2026
? Polarity: Indicated by cathode band
? Standard packaging: 12mm tape (EIA-481)
? Weight: 0.0023 ounce, 0.0679 gram
