FEATURES
? Plastic package has Underwriters Laboratory Flammability Classification 94V-O
? For surface mounted applications ? Low power loss, high efficiency ? High surge capacity
? High current capacity, low VF
? Lead free in compliance with EU RoHS 2011/65/EU directive
? Green molding compound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA

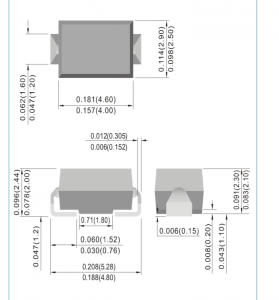

? Case: JEDEC SMA(W) molded plastic
? Terminals:Solder plated, solderable per MIL-STD-750, Method 2026 ? Polarity: Color band denotes cathode end
? Standard packaging: 12mm tape (EIA-481)
? Weight: 0.0024 ounces, 0.0679 grams
